Official Site
OVERVIEW
Expanded connectivity for Desktop Audio is the theme we’ve been working towards lately. I listen to powered speakers at my desk whenever I have the chance, and transition to headphones at other times. Many of our customers listen the same way, and agree that a single system should be able to interface with headphones and speakers.
Sometimes a system doesn’t involve a USB connection. Thus, optical and coaxial S/PDIF inputs are long overdue. Element Line provide means to switch between listening to headphones or to powered speakers. Introducing:
- JDS-Labs_Quote.jpg (147.24 KiB) Viewed 3039 times
EL Dac
EL DAC delivers performance far beyond Objective criteria, with full USB Audio Class 2 support, transformer isolated coaxial input, and optical input. Stack with EL Amp for single button switching between headphones and speakers.
- El-Dac_01.jpg (95.84 KiB) Viewed 3039 times
- El-Dac_02.jpg (91.81 KiB) Viewed 3039 times

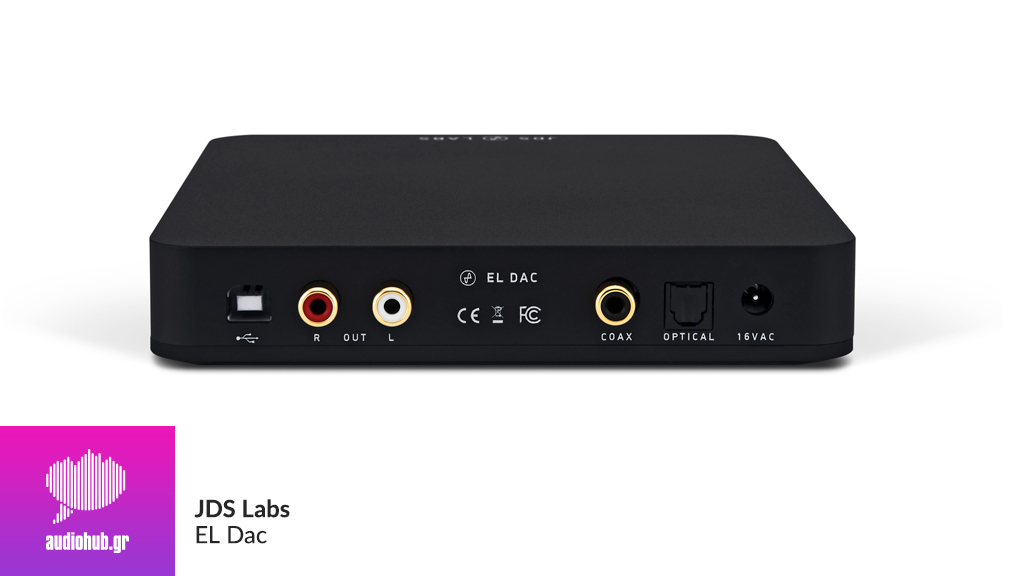

- El-Dac_03.jpg (104.14 KiB) Viewed 3039 times
DAC PERFORMANCE
Frequency Response 20Hz-20kHz
+/- 0.15dB
THD+N 20Hz-20kHz
< 0.0011%
IMD CCIF 19/20 kHz -6.03 dBFS
0.00017%
IMD SMPTE -6.03 dBFS
0.00061%
Noise (A-Weighted)
-109 dBu
Dynamic Range (A-Weighted)
117 dB
Linearity Error -90 dBFS
-0.01 dB
Crosstalk -10 dBFS 100K RCA
-108 dB
USB Jitter Components 11025Hz
-116 dB
Maximum DAC Line-Output, 100K
2.00 VRMS
DATA SUPPORT
Audio Formats (S/PDIF)
16/44.1kHz thru 24/192kHz
Audio Formats (USB)
16/44.1kHz thru 32/384kHz
USB Interface
USB Audio Class 2
USB Driver OS Support
Windows XP/7/8/10, OS X, Linux
CONNECTIVITY
Digital Inputs
USB, TOSLINK, and Coaxial S/PDIF
DAC Line-Output
RCA
EL Amp
EL Amp combines a powerful headphone amplifier with a comfortable knob, housed in a precision machined chassis. Enjoy seamless transitions between your powered speakers and headphones.
- El-Amp_01.jpg (121.68 KiB) Viewed 3039 times
- El-Amp_02.jpg (120.53 KiB) Viewed 3039 times

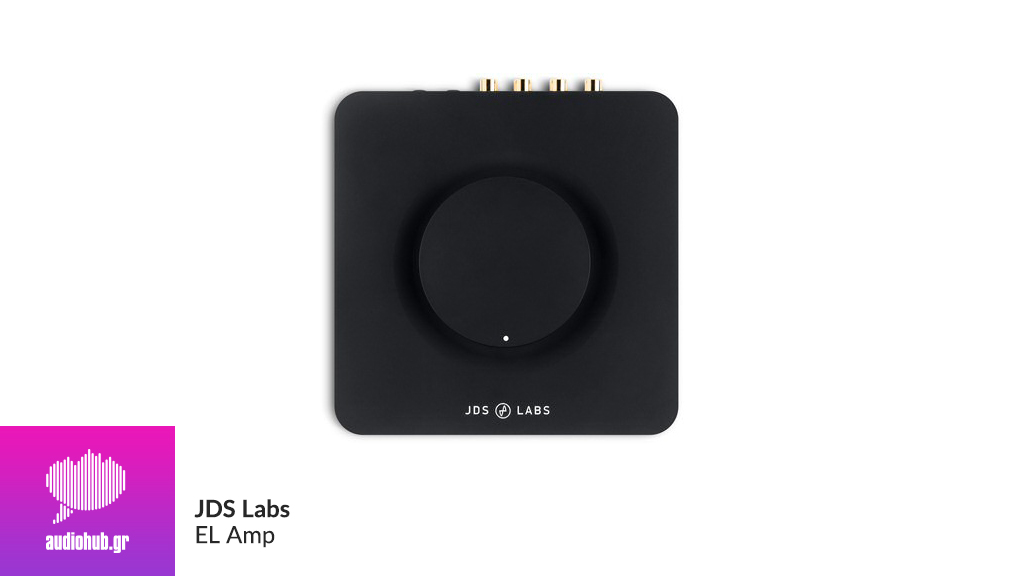

- El-Amp_03.jpg (67.32 KiB) Viewed 3039 times
AMPLIFIER PERFORMANCE
Frequency Response 20Hz-20kHz
+/- 0.1dB
THD+N 1kHz, 150 Ω
0.0009%
IMD CCIF 19/20kHz 150 Ω
0.0004%
IMD SMPTE 150 Ω
0.0005%
Noise, A-Weighted
-108 dBu
Crosstalk @ 150 Ω
-67 dB
Output Impedance
0.1 Ω
Channel Balance
+/- 0.56 dB
Max Continuous Output, 600Ω
140 mW (9.4VRMS)
Max Continuous Output, 150Ω
505 mW
Max Continuous Output, 32Ω
1.1 W
Peak Output Power, 32Ω
1.5W
CONNECTIVITY
Headphone Output
6.35mm (1/4")
Analog Input
RCA
Line-Output
RCA
The Element
We designed The Element to simplify your desktop audio experience. Element's powerful headphone amp, ultra clean USB DAC, and graceful switch are all housed in a precision machined chassis with a comfortable knob. Enjoy seamless transitions between your powered speakers and headphones.

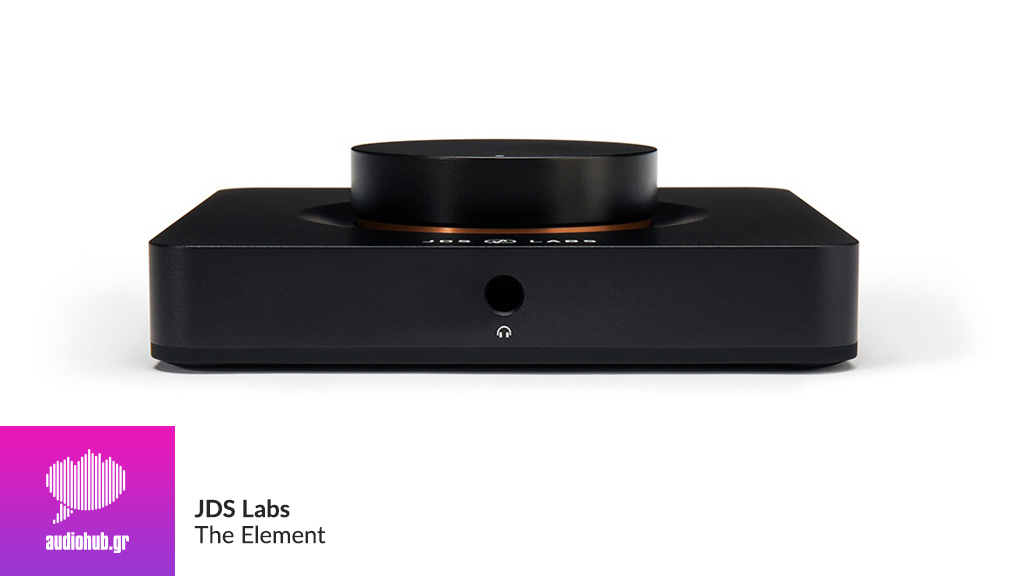

- The-Element_01.jpg (122.65 KiB) Viewed 3039 times

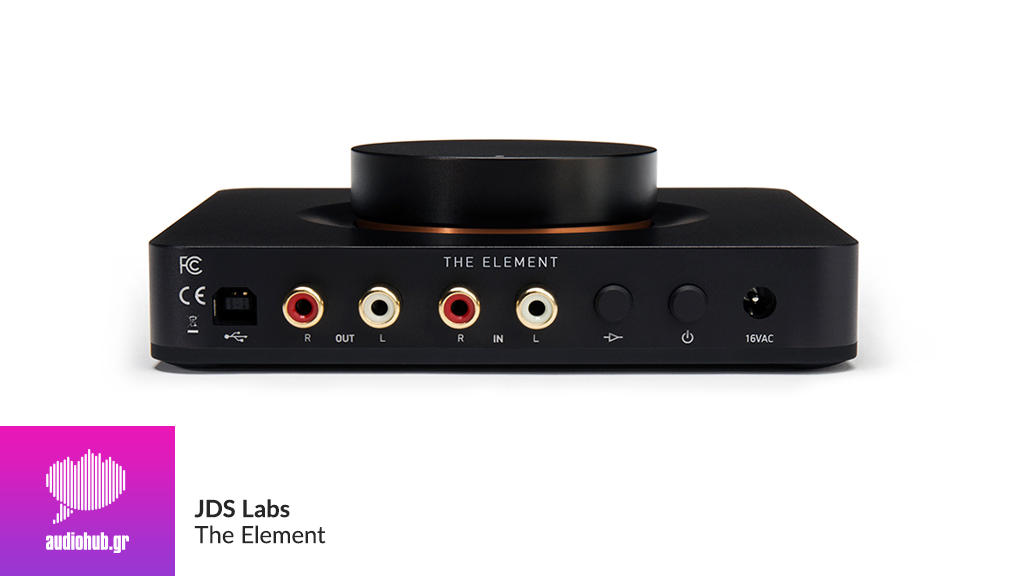

- The-Element_02.jpg (131.96 KiB) Viewed 3039 times

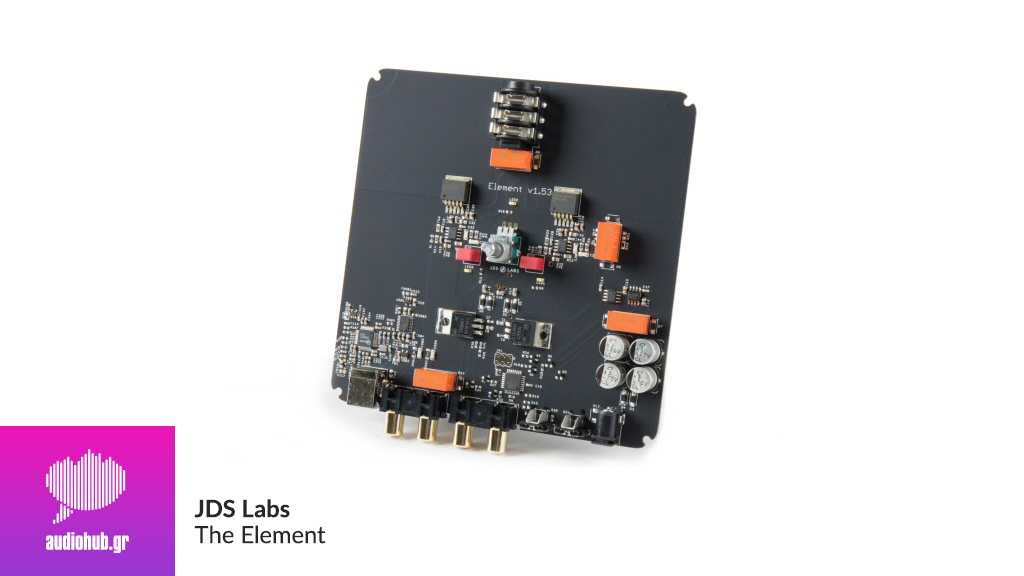

- The-Element_03.jpg (137.24 KiB) Viewed 3039 times
AMPLIFIER PERFORMANCE
Frequency Response 20Hz-20kHz
+/- 0.1dB
THD+N 1kHz, 150 Ω
0.0009%
IMD CCIF 19/20kHz 150 Ω
0.0004%
IMD SMPTE 150 Ω
0.0005%
Noise, A-Weighted
-108 dBu
Crosstalk @ 150 Ω
-67 dB
Output Impedance
0.1 Ω
Channel Balance
+/- 0.56 dB
Max Continuous Output, 600Ω
140 mW (9.4VRMS)
Max Continuous Output, 150Ω
505 mW
Max Continuous Output, 32Ω
1.1 W
Peak Output Power, 32Ω
1.5W
DAC PERFORMANCE
Frequency Response 20Hz-20kHz
+/- 0.15dB
THD+N 100 Hz -0.15 dBFS
0.0023%
THD+N 20 Hz -0.15 dBFS
0.0016%
THD+N 10 kHz -0.15 dBFS
0.0019%
IMD CCIF 19/20 kHz -6.03 dBFS
0.0011%
IMD SMPTE -6.03 dBFS
0.0012%
Noise A-Weighted dBu 24/96
-102 dBu
Dynamic Range (A-Weighted)
>112 dB
Linearity Error -90 dBFS 24/96
-0.02 dB
Crosstalk -10 dBFS 100K RCA
-100 dB
USB Jitter Components 11025Hz
-113 dB
Maximum DAC Line-Output, 100K
2.10 VRMS
DATA SUPPORT
Interface
USB, Audio Class 1
Native OS Support
Windows XP/7/8/10, OS X, Linux
Audio Formats
16/44, 16/48, 16/88.2, 16/96,
24/44, 24/48, 24/96
CONNECTIVITY
Headphone Output
6.35mm (1/4")
Analog Input
RCA
DAC Line-Output
RCA
Digital Input
USB
