AK4497 DAC & High-end components
The M300 is equipped with an AK4497EQ high-end DAC chip from AKM. The latter supports high sampling rates, in PCM up to 32bit 768kHz and in DSD up to DSD512. In addition, the chip uses the proprietary Velvet Sound architecture allowing it to provide a high SNR (128dB) and very low distortion (THD+N -116dB) for neutral and accurate reproduction, with a beautiful sound image.
This chip is combined with many quality components such as a second-generation XMOS USB interface, two ultra-low phase noise Japanese NDK clocks to significantly limit jitter on 44.1kHz / 48kHz and multiple frequencies, and finally a series of resistors and capacitors specially designed for audio use.
Design, Screen & Connectivity
All components are integrated into a beautiful CNC machined Aluminium housing, both robust and allowing to limit interference that could degrade the audio signal. The front panel is covered with a tempered glass plate of the most beautiful effect and a 1.54" IPS screen, allowing you to display all the information related to the reading of your files (input, filter, sampling rate, read format...). The control is done simply with the two buttons on the front panel, allowing you to turn the device on/off, select an input, change the display color or choose an audio filter.
The back of the device contains all the connections. Toslink Optics, Micro USB (XMOS) and Coaxial are at the input. On the output side, the M300 offers either symmetrical XLR or asymmetrical RCA.
SPECIFICATIONS
Product type DAC
Inputs 1x Micro USB XMOS
1x Optical Toslink
1x S/PDIF Coaxial
Outputs 1x Single ended RCA
1x Balanced XLR
Output level RCA : 2Vrms
XLR : 4Vrms
THD+N 0.0004%
Dynamic range RCA : 120dB
XLR : 123dB
SNR 116dB
USB compatibility Windows 7 / 8 / 8.1 / 10
Mac OSX 10.6 or more
Linux
Sampling rate/ Bit depth USB : Up to 32bit 768kHz / DSD512
Optique / Coaxial : Up to 24bit 192kHz
SPECIFICATIONS
Consumption 1.8W
Standby consumption < 0.1W
Dimensions (WxHxD) 70 x 70 x 160mm
Weight 500g
- 20210711_115458.jpg (580.4 KiB) Viewed 1258 times
- 20210711_115203.jpg (528.85 KiB) Viewed 1258 times
- 20210711_115210.jpg (482.38 KiB) Viewed 1258 times

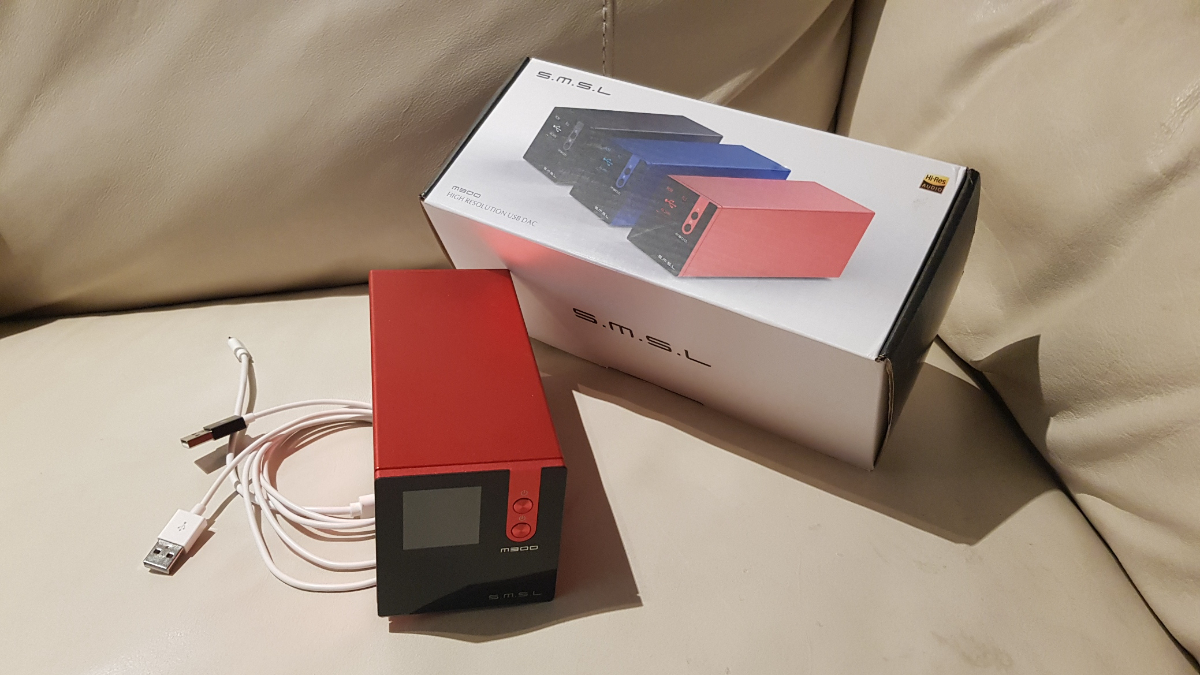

- 20210711_115148.jpg (558.94 KiB) Viewed 1258 times
Το DAC όπως βλέπετε είναι σε κατάσταση καινούργιου, ελάχιστη χρήση.
Μαζί και το αυθεντικό τροφοδοτικό της SMSL (που το δίνανε ξεχωριστά).
Τελική τιμή 150 ευρώ.
Δεκτή και ανταλλαγή με καλώδιο interconnect VOVOX Sonorus RCA 1m.
